The contents of the EE 1000 series kits

The component listings vary somewhat in style both between kits and over time. This table is my attempt at combining all this information in a harmonised style.

EE
10
50
EE
10
51
EE
10
52
EE
10
10
EE
10
11
EE
10
03
EE
10
04
EE
10
05
EE
10
06
EE
10
00h
EE
10
07
EE
10
08
EE
10
40
1001 Transistor (T) BF 194 1111 12 1
1002 Transistor (T) BC 148 1111 22
1003 Diode (D) OA 85 1 1 11
1004 Resistor (R)10 Ω 11 11
22 Ω 1111 1
47 Ω 1111
100 Ω 11 112 1
150 Ω 1 1
180 Ω 11
220 Ω 1111
270 Ω 22
470 Ω 11 11
560 Ω 11
680 Ω 3
1 000 Ω 11112 4 53
1 200 Ω 1
1 500 Ω 11 11 11
2 200 Ω 11111 3 1 1
2 700 Ω 12
3 300 Ω 1111 2
3 900 Ω 2
4 700 Ω 1111 224 41
6 800 Ω 1
8 200 Ω 1
10 000 Ω 111 11 213 91
15 000 Ω 11 11
18 000 Ω 1
22 000 Ω 22 2 21 3
27 000 Ω 12
33 000 Ω 1
39 000 Ω 1
47 000 Ω 1111 21 3 14 1
82 000 Ω 1
100 000 Ω 11 1 11 2
150 000 Ω 1
180 000 Ω 1
220 000 Ω 1111 1
470 000 Ω 1111 1
4 700 000 Ω 1
1005 Polyester Capacitor (C)22 000 pF 11 111
47 000 pF 11112
0.10 µF 2222 4 11
0.15 µF 1
0.22 µF 1 1 11 1
0.47 µF 1
0.68 µF 1
1006 Electrolytic Capacitor (C)4 µF 1- 1 11 1
10 µF 1- 1112 1
125 µF 11- 11 22 1 1
640 µFi - 11 1
1007 Ceramic Capacitor (C)4.7 pF 1 1
10 pF 2 22
22 pF 2 21 3
47 pF 1 11 2
68 pF 1 1
100 pF 1 1
180 pF 1 1
220 pF 1 1
330 pF 1 1
470 pF 1 1
560 pF 1
1 000 pF 1 1 11 1-
1 500 pF 12 -
2 700 pF 21 3
3 900 pF 1
4 700 pF 2 2 41
5 600 pF 1
10 000 pF 1 11 2 61
1008 Choke coil (L)9.5 mH 1 1 11
1009 Middle wave aerial coil (L)400 µH 1 1 11
1010 Light dependent resistor (R) 1111
1011 Potentiometer (R) with switch10 000 Ω 111
1012 Variable capacitor (C)5–180 pF 1 1 11
1013 Loudspeaker150 Ω, 1 W 11112
1014 Lamp6 V, 0.05 A 11123
1015 Battery holder with springs for 6 penlite cells 11d1d1d
1016 Bare wire5 m - 122 22 1
1017 Insulated wire5 mf 111 11 211 14 22
1018 Ferroxcube rod 1 1 11
1019 Rubber grommet 2 2 22 2
1020 Hairpin springa 232323 3525 503525 25135 11090 25
1021 Large coil spring 232323 3525 503525 25135 11090 25
1022 Small coil spring 18g18g18g 2020 20g2010g 50 2020 10
1023 Dial knob 1 1 11 2
1024 Plate for mounting variable capacitor 1 1 11 2
1025 Knob 11121 3
1026 Lampholder 11123 1
1027 Window for lamp 1111
1028 Rubber band 55d5d5d 2
1029b Lever 2111
1030b Contact spring for lever 2111
1031b Bracket for lever 4222
1032 Grub screw3 mm 11 32 232 6
1033 Square nut3 mm 33 45 442c 9c
1034 Washer for potentiometer 111
1035 Washer 4448
1036 Screw3 × 12 mm 2 22 2c 2c
1037 Bracket for mounting panel 222
1038 Front panel 111
1039 Mounting plate 111 1
1040 Trimmer potentiometer (R)10 000 Ω 11
47 000 Ω 22 41
1041 Earphone 1
1042 Extension shaft for trimmer potentiometer 122
1043 Bronze spring 1
1044 Screw3 × 8 mm 2
1045 Screw for mounting chassis 2
1046 Bracket for mounting chassis 2
1047 Leg 2
1048 Front panel 1
1049 Mounting plate 1
1050 Transistor (T)AC 132 22
1051 Output transformer (L)yellow 11
1052 Driver transformer (L)blue 11 1
1053 Sliding switch 11 2
1054 Threaded rod3 × 45 mm 22
1055 Distance bush25 mm 22
1056 Distance bush8 mm 22
1057 Double variable capacitor (C)2 × 5–180 pF 1 1
1058 Oscillator coil (L)white 1 1
1059 Intermediate frequency coil (L)red 2e 2
1060 Long wave aerial coil (L)580 µH 1e 1
1061 Screw4 × 8 mm 2c 2
1062 Screw2.6 mm 4 4
1063 Thermistor (R)NTC, 130 Ω 11
1101 Blade receptacle 10
1111 Wood screw 8
1112 Dowel for spacer rod 8
1120 Spacer rod 4
1122 Battery holder 6 V for 4 D cells 2
1125 Diode (D)BA 217 61 1
1126 Voltage dependent resistor (R)1.5 V 1
1129 Lamp3.8 V, 0.07 A 1
1130 Mounting plate 1
1133 Battery clip (4)d(4)d(4)d 2
1201 Cathode ray tube unit 1
1202 Battery holder 6 V for 4 D cells, with connecting cable 1
1205 Channel selection unit UHF 1
1206 Image intermediate frequency amplifier unit 1
1207 Bandpass filter (L)5.5 MHz 1
1208 Audio demodulation unit 1
1209 Line oscillator coil (L) 1
1211 Transistor (T)BC 158 31
1212 Transistor (T)BC 238 63 1
5015 Telegraph key 1
  1. The hairpin spring (1020) was given a new, more ergonomic shape in 1970.

  2. The parts making up the switch (1029, 30 and 31) were given new shapes between 1970 and 72, but the part numbers remained unchanged. Instead of these, the 1970 UK manual lists a readily assembled on-off push switch as part 29 and a momentary switch of the same design as part 30.

  3. In the revised version of the manual from 1970, the 4 mm screw (1061) meant to be screwed into the square holes in the plastic plate for mounting variable capacitors (1024) was dropped from the parts list, and the mounting instructions changed to show the use of two 3 × 12 mm screws (1036) with square nuts (1033) instead. However, no extra ones of these were listed; presumably in error, as otherwise it would not be possible to mount both variable capacitors as required by construction F4.

  4. The battery holder for six 1.5 V penlite cells (1015) was replaced by four battery clips for two 4.5 V flat-pack lantern batteries (1133) in 1973. It is unclear whether the number of rubber bands were reduced from five as fewer is needed for this solution (one instead of three). The change affected the Quelle 24739 kit which was identical to the discontinued EE 1010 as well as EE 1003 and EE 1000, but not EE 1050 where the space was too cramped to accommodate this solution.

  5. In the early version of the manual from 1968, the numbers were erroneously listed as one intermediate frequency coil (1059) and two long wave aerial coils (1060) rather than vice versa.

  6. The UK 1970 manual lists rolls of 4 m rather than 5 m

  7. Both the multilingual 1969 EE 1005 and the UK 1970 EE 1050 manuals erroneously omits this entry. The Dutch 1972 EE 1003 manual only lists 18 instead of 20 for this kit.

  8. Lacking the small leaflet from EE 1000 with the component counts, I have for this kit inserted the sum of components from EE 1003, 04, 05 and 06, except where it is clear from images of the kit that components in both EE 1004 and 05 are only contributing once.

  9. From 1970, this could have the alternate value 680 µF.

The numbering scheme for parts developed in stages. When the series started in 1967, the part numbers for EE 1003 were numbered sequentially from 1 to 39. For EE 1050/51/52, parts matching these reused the numbers for EE 1003, while unique parts were given numbers from 40 to 49. When EE 1004 and 05 were released the following year, parts unique to these were numbered 50–56 and 57–62 respectively.

When EE 1006 was released in 1972, 1000 was retroactively added to all part numbers, so the single component unique to this kit was numbered 1063. With the introduction of EE 1007, 08 and 40, these were further prefixed by “349.”, making the full order number for resistors “349.1004”. Components unique to these kits were not numbered consecutively, but were given numbers in the ranges 1101–1133 and 1201–1212 regardless of which kit they belong to. A single part was given the number 5015, because it had earlier been used as part 15 of the PE 1501 kit, where 5000 was added to the sequential numbers to distinguish them from parts from other series.

This numbering system was later extended to the successor series EE 2000, EE 2001, EE 2000, and the ABC and Modul series.


1001 Transistor (T) BF 194
1002 Transistor (T) BC 148
1003 Diode (D) OA 85
1004 Resistor (R)
1005 Polyester Capacitor (C)
1006 Electrolytic Capacitor (C)
1007 Ceramic Capacitor (C)
1008 Choke coil (L)9.5 mH
1009 Middle wave aerial coil (L)400 µH
1010 Light dependent resistor (R)
1011 Potentiometer (R) with switch10 000 Ω
1012 Variable capacitor (C)5–180 pF
1013 Loudspeaker150 Ω, 1 W
1014 Lamp6 V, 0.05 A
1015 Battery holder with springs for 6 penlite cells
1016 Bare wire5 m
1017 Insulated wire5 m
1018 Ferroxcube rod
1019 Rubber grommet
1020 Hairpin spring (old)
1020 Hairpin spring (new)
1021 Large coil spring
1022 Small coil spring
1023 Dial knob
1024 Plate for mounting variable capacitor

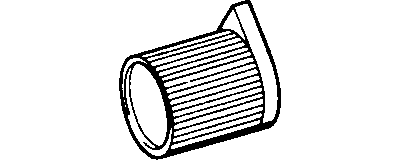

1025 Knob
1026 Lampholder

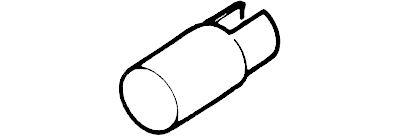

1027 Window for lamp
1028 Rubber band
1029 Lever (old)
1030 Contact spring for lever (old)
1031 Bracket for lever (old)
1029 Lever (new)
1030 Contact spring for lever (new)
1031 Bracket for lever (new)
1032 Grub screw3 mm
1033 Square nut3 mm

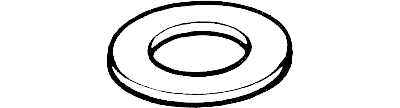

1034 Washer for potentiometer
1035 Washer
1036 Screw3 × 12 mm
1037 Bracket for mounting panel (EE 1003/10)
1038 Front panel (EE 1003/10)
1039 Mounting plate (EE 1003/10)
1040 Trimmer potentiometer (R)
1041 Earphone
1042 Extension shaft for trimmer potentiometer
1043 Bronze spring
1044 Screw3 × 8 mm
1045 Screw for mounting chassis (EE 1050)

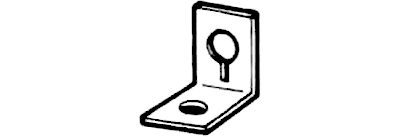

1046 Bracket for mounting chassis (EE 1050)
1047 Leg
1048 Front panel (EE 1050)
1049 Mounting plate (EE 1050)
1050 Transistor (T)AC 132
1051 Output transformer (L)yellow
1052 Driver transformer (L)blue
1053 Sliding switch
1054 Threaded rod3 × 45 mm
1055 Distance bush25 mm
1056 Distance bush8 mm

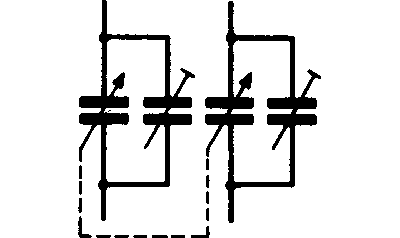

1057 Double variable capacitor (C)2 × 5–180 pF
1058 Oscillator coil (L)white
1059 Intermediate frequency coil (L)red

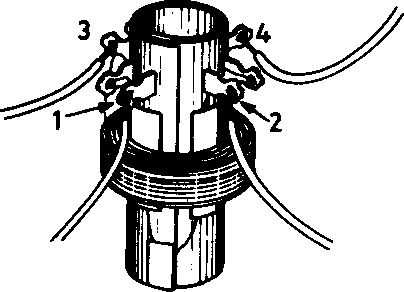

1060 Long wave aerial coil (L)580 µH
1061 Screw4 × 8 mm
1062 Screw2.6 mm
1063 Thermistor (R)NTC, 130 Ω
1101 Blade receptacle
1111 Wood screw
1112 Dowel for spacer rod
1120 Spacer rod
1122 Battery holder 6 V for 4 D cells
1125 Diode (D)BA 217
1126 Voltage dependent resistor (R)1.5 V
1129 Lamp3.8 V, 0.07 A
1130 Mounting plate (EE 1040)
1133 Battery clip
1201 Cathode ray tube unit
1202 Battery holder 6 V for 4 D cells, with connecting cable
1205 Channel selection unit UHF
1206 Image intermediate frequency amplifier unit
1207 Bandpass filter (L)5.5 MHz
1208 Audio demodulation unit
1209 Line oscillator coil (L)
1211 Transistor (T)BC 158
1212 Transistor (T)BC 238

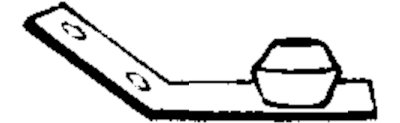

5015 Telegraph key
